HDPE PE Pipe Extrusion Machine

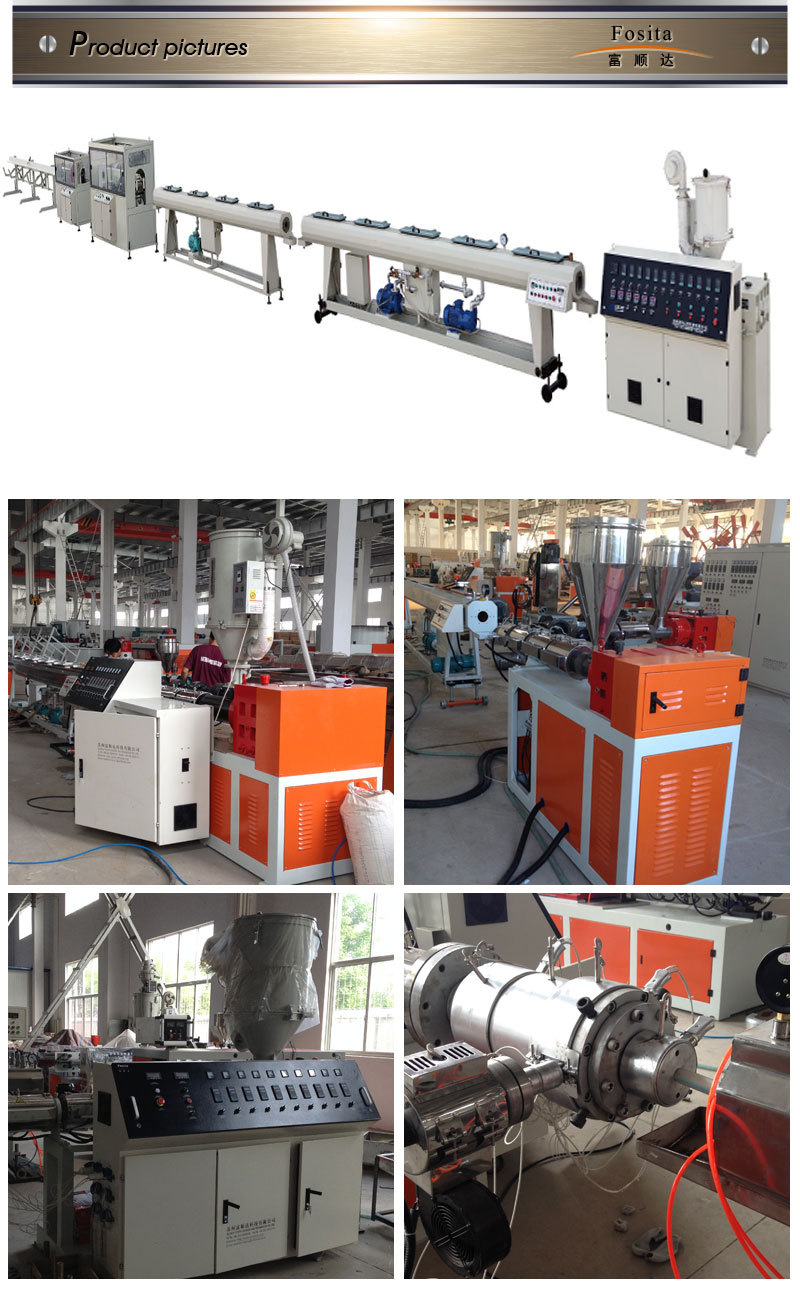

HDPE PE Pipe Extrusion Machine

HDPE PE Pipe Extrusion Machine
HDPE PE Pipe Extrusion MachineHDPE PE Pipe Extrusion MachineHDPE PE Pipe Extrusion MachineHDPE PE Pipe Extrusion MachineHDPE PE Pipe Extrusion Machine
CategoriesPlastic Pipe Extrusion Machine
AlbumView larger image
BrandFOSITA
ModelFST
ConditionNew
ApplicationPipe
Screw DesignSingle-screw
Model NumberFST-PE
Voltage380V
Power(W)37kw
Dimension(L*W*H)CAPACITY
Weight4000kg
UsageWater Pipe
FOB portSHANGHAI
Terms of PaymentL/C, D/A, D/P, Western Union, MoneyGram, T/T
Update Time2019-09-22
Detail Information
Product Description
The screw of the extruder is equipped with barrier unit and mixing structure, and the barrel owns new style grooves.

All of these offer good plastification and mixing effect.

                         Extrusion Moulds 315mm

                            Extrusion moulds 630mm
Special design of basket die head for HDPE(PP,ABS)large diameter pipe,

with thick wall offer lower melting temperature,good mixing, lower pressure of cavity and stable production.

                        Vacuum Calibration Tank


                                 Spray Cooling Tank
Special design for sizing and cooling system by using film and water ring to cool HDPE(PP.ABS)material,

which can fit for the requirement of sizing stability and roundness of HDPE(PP,ABS)

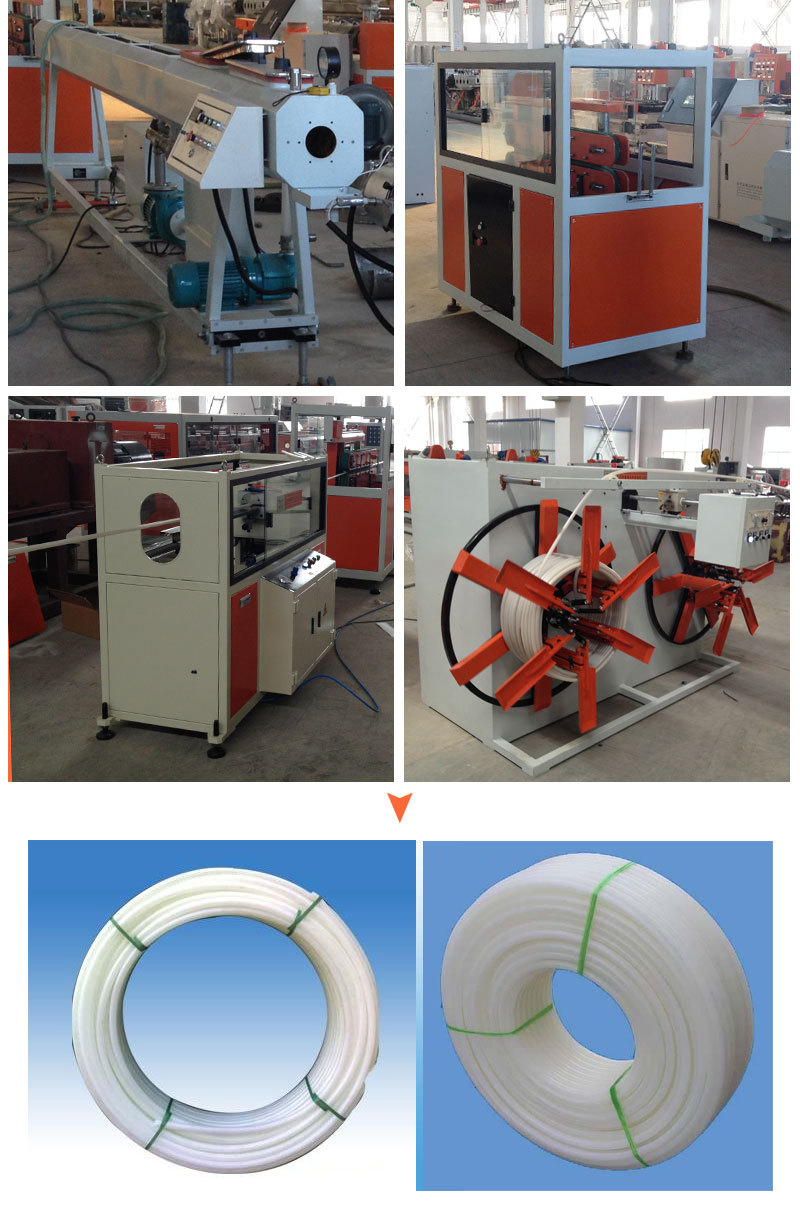

Haul off Machine
Cutting Machine
The whole production line adopts PLC performance control system,which makes the operation convenient.

This line can be equipped with co-extruder for extruding color strip.
Main Control Panel
Co-extruder
Product Advantage

Provide solution for multi-layer pipe

★ Unique design of multi-layer die head to offer economic material cost plan

★ Good auxiliary machine to equip with the production speed

★ Improve screw with excellent plasticization performance and high capacity

★ High efficiency die head quality with good effect of vaccum tank

★ Stable haul off speed with clean cut
Working Video
HDPE/PE Extrusion Machine





Working Video Please Click:

Technical Parameters

Pipe range(mm)

20-63

50-110

75-250

90-315

160-450

315-630

400-800

Extruder model

65/33

65/33

75/33

75/33

90/33

120/33

150/33

Extruder power(kw)

37

55

110

132

160

280

355

Max.Output

(kg/h)

120

180

330

380

450

750

900

Products Sample
