PVC Pipe Extrusion Machine With Conical Twin Screw Extruder

PVC Pipe Extrusion Machine With Conical Twin Screw Extruder

PVC Pipe Extrusion Machine With Conical Twin Screw Extruder
PVC Pipe Extrusion Machine With Conical Twin Screw ExtruderPVC Pipe Extrusion Machine With Conical Twin Screw ExtruderPVC Pipe Extrusion Machine With Conical Twin Screw ExtruderPVC Pipe Extrusion Machine With Conical Twin Screw ExtruderPVC Pipe Extrusion Machine With Conical Twin Screw Extruder
CategoriesPlastic Pipe Extrusion Machine
AlbumView larger image
BrandFOSITA
ModelFST-PVC
ConditionNew
ApplicationPipe
Screw DesignDouble-screw
Voltage380V
Power(W)55kw
Dimension(L*W*H)20mx2.5mx2.2m
Weight10T
After-sales Service Providedrovided: Engineers available to service machinery overseas
Cooling wayRecycling water
Line speed1-5m/min
FOB portSHANGHAI
Terms of PaymentL/C, Western Union, T/T
Update Time2019-08-23
Detail Information
Production Description

Adopt the china top ten sale screw extruder machine, and mainly used in extruding PVC, PE, PP, PET,ABS and so on

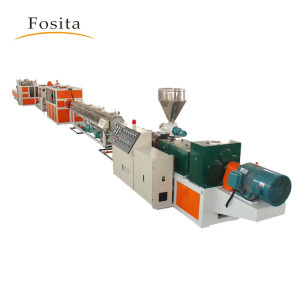

PVC pipe process

Formulation→High-speed mixing→Conical twin-screw extrusion→Vacuum sizing, spray cooling→traction→fixed length cutting

Production Details
Screw material:

High quality alloy steel-38GrMoAlA, after high-temperature nitriding, nitriding deepth: 0.5-07mm, the surface hardness HV740-940.

Heating unit:

It is mainly composed of cast aluminum heater and stainless steel casing, and has excellent thermal conductivity of metal alloy to ensure uniform temperature of hot surface.
  Extrusion Mould:

It is the construction part of pipe forming.
  Vacuum Forming Machine

For pipe shaping and cooling,equipped with vacuum system and water circulation system for shaping and cooling,stainless steel box,circulating water spray cooling.

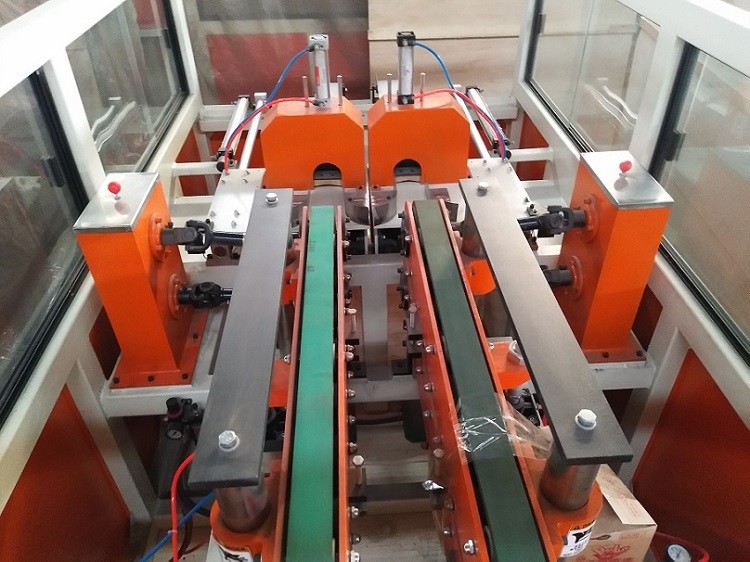

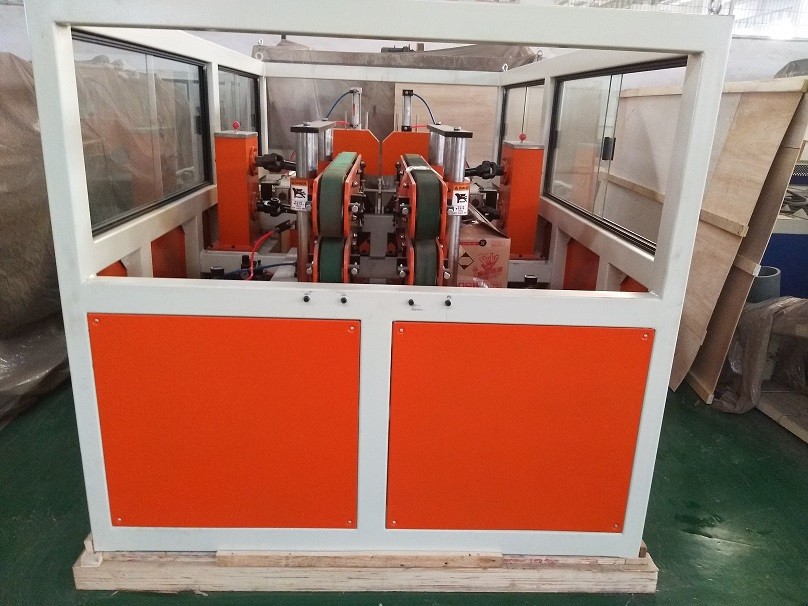

 Haul off  machine

Used for continuous and automatic extraction of cooled and hardened pipes from the nose,frequency conversion speed regulation.

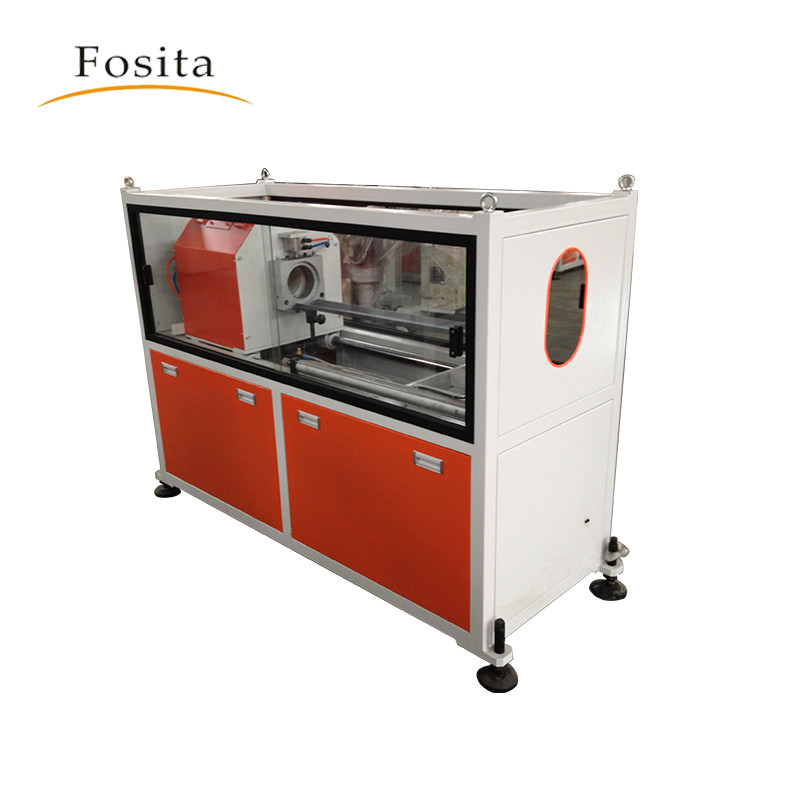

 Cutting machine

The cutting machine takes the fixed length switch signal as the instruction,completes the whole cutting process and keeps synchronization with the pipe operation during the cutting process.
Technical Parameter
Pipe Line Model
Diameter Range(mm)
Extruder Model
Line length(m)
FST-63
16-63
SJSZ-51/105
24
FST-110
20-110
SJSZ-55/110
25
FST-260
50-250
SJSZ-65/132
25
FST-315
110-315
SJSZ-80/156
25
FST-630
315-630
SJSZ-92/188
32
FST-800
500-800
SJSZ-105/218
33
Working Video

                Fosita  400mm PVC pipe extrusion line

                      www.youtube.com



               Fosita  630mm PVC pipe extrusion line

                              www.youtube.com


Wide Application
PVC pipe is mainly used for the production of agricultural drainage, building drainage, electricity, communication cables, etc. and various PVC pipes with various pipe diameters and wall thicknesses.

    Agricultural drainage pipe

           Building drainage pipe

              Communication cables
