Hard Plastic Pipe Belling Machine-Universal

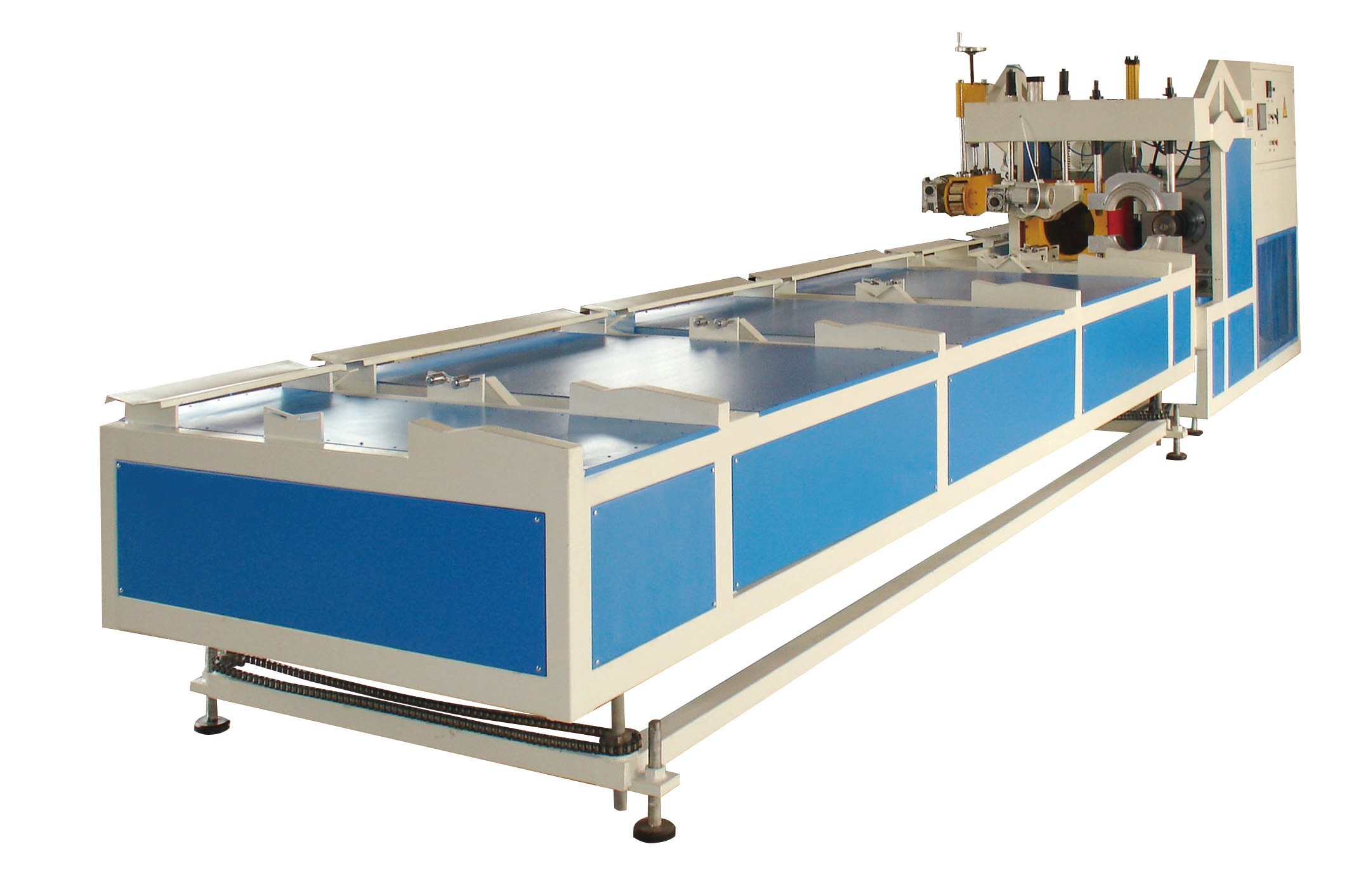

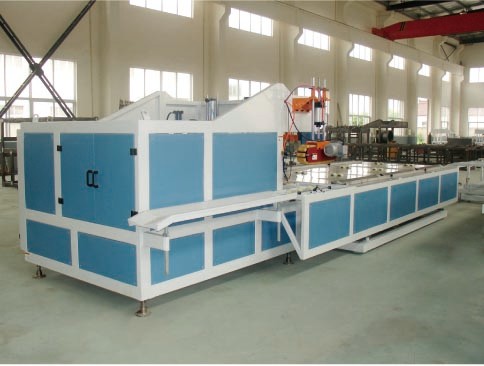

Hard Plastic Pipe Belling Machine-Universal

Hard Plastic Pipe Belling Machine-Universal
Hard Plastic Pipe Belling Machine-UniversalHard Plastic Pipe Belling Machine-UniversalHard Plastic Pipe Belling Machine-UniversalHard Plastic Pipe Belling Machine-Universal
CategoriesPlastic Pipe Extrusion Machine
BrandFOSITA
ModelFST
ConditionNew
Product TypePlastic Pipe
Brand NameFosita
Model NumberFST150/250/315/500/630
Voltage380V 50Hz
Power(W)5-36kw
Dimension(L*W*H)7290x2000x1540
After-sales Service ProvidedEngineers available to service overseas
Belling TypeR.U. and square type
Pipe Diameter50-630mm
Working Pressure(Mpa)4-6.3
Water Consumption(m3/h)0.4
FOB portSHANGHAI
Terms of PaymentL/C, Western Union, T/T
Download
Update TimeOct 10,2024
Detail Information
Specification

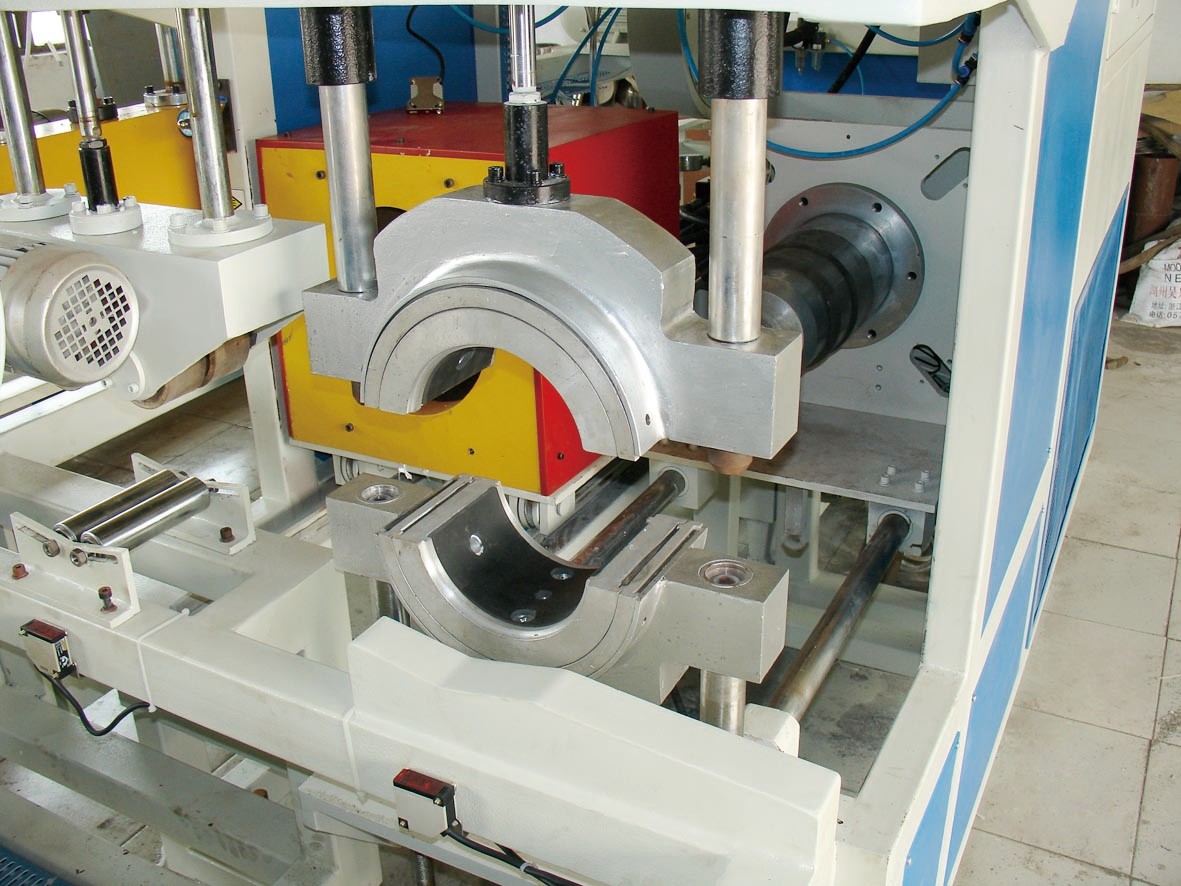

Features of pvc pipe socket machine:
1.SGK series Pipe Belling machine with hauling device and program interface concerned is used with extruding machine. It is also used solitarily.

2.While expanding pipes,the machine adopts translation.The action is steady and correct.It does not damage pipes.

3.The machine adopts electric heating type.Each oven is equipped with heating core.The shaping method adopts expandingend shaping. The size of pipe mouth is correct. On its panel, there is a transfer switch for belling  solvent type socket (Straight port) and seal loop type pipe socket(R type).The choice of expanding pipe types is very convenient.

4.The technological adaptability is strong.All the key electric control elements are imported.
Working Video





Fosita Pipe Belling Machine
Please Click
Technical Parameters
Model
Diameter(mm)
Wall thickness(mm)
Pipe Length(mm)
Total power(kw)
Output(pcs/h)
FST-150
50-160
2.9-15
4-5
6.77
2-40
FST-250
63-250
2.9-15
4-6
8.87
2-40
FST-315
160-315
2.9-15
4-6
12.55
2-35
FST-500
250-500
2.9-22
4-6
15.15
2-30
FST-630
400-630
2.9-22
4-6
16.35
2-30
Belling Procedure
Belling Moulds and Pipe Products

      R Type Belling Machine Mould/Belling Machine Pipe

        Square Type Belling Machine/Belling Machine Type

      U Type Belling Machine Mould/Belling Machine Pipe
