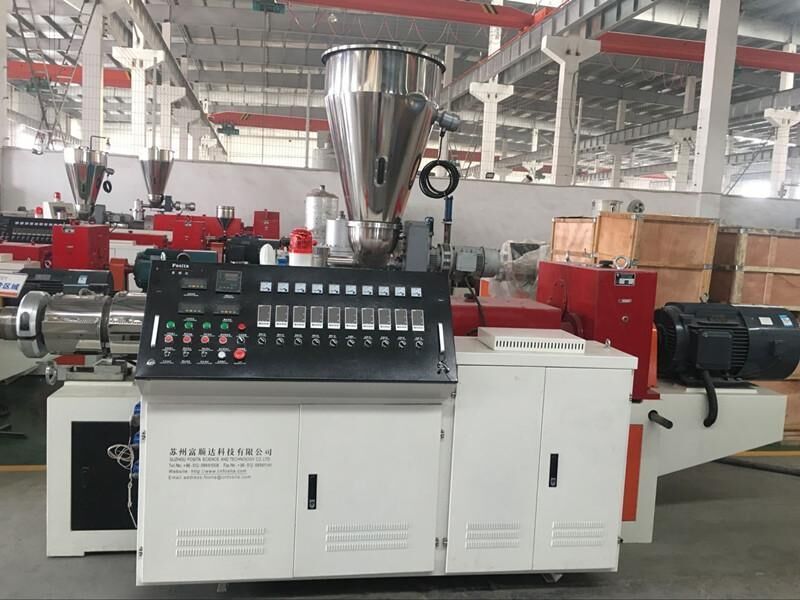

PVC Pipe Extrusion Machine With Conical Twin Screw Extruder
PVC Pipe Extrusion Machine With Conical Twin Screw Extruder
| Categories | Plastic Pipe Extrusion Machine |
|---|---|
| Brand | FOSITA |
| Model | FST-PVC |
| Condition | New |
| Application | Pipe |
| Screw Design | Double-screw |
| Voltage | 380V |
| Power(W) | 55kw |
| Dimension(L*W*H) | 20mx2.5mx2.2m |
| Weight | 10T |
| After-sales Service Provided | rovided: Engineers available to service machinery overseas |
| Cooling way | Recycling water |
| Line speed | 1-5m/min |
| FOB port | SHANGHAI |
| Terms of Payment | L/C, Western Union, T/T |
| Download DOC |  |
| Update Time | Apr 20,2024 |
Detail Information
Production Description
PVC pipe process
Formulation→High-speed mixing→Conical twin-screw extrusion→Vacuum sizing, spray cooling→traction→fixed length cutting
Production Details
★ Screw material:
High quality alloy steel-38GrMoAlA, after high-temperature nitriding, nitriding deepth: 0.5-07mm, the surface hardness HV740-940.

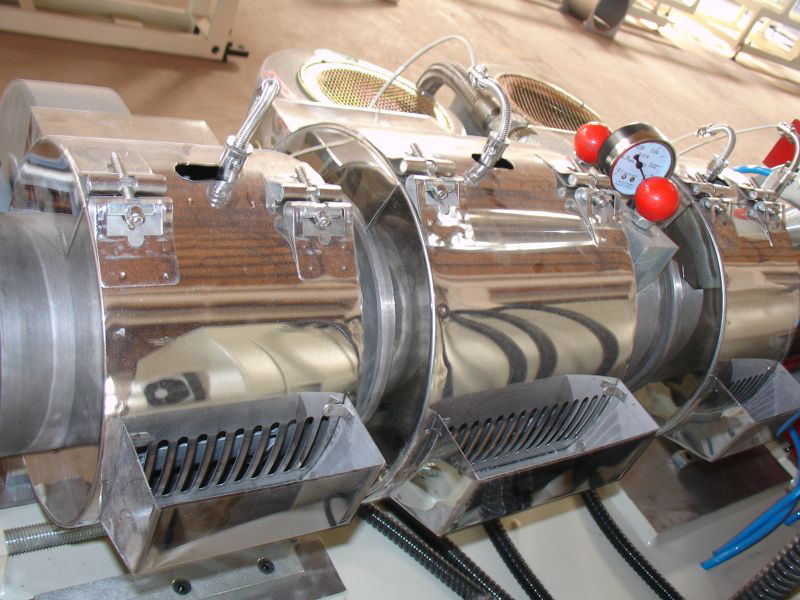

★ Heating unit:
It is mainly composed of cast aluminum heater and stainless steel casing, and has excellent thermal conductivity of metal alloy to ensure uniform temperature of hot surface.
★ Extrusion Mould:
It is the construction part of pipe forming.

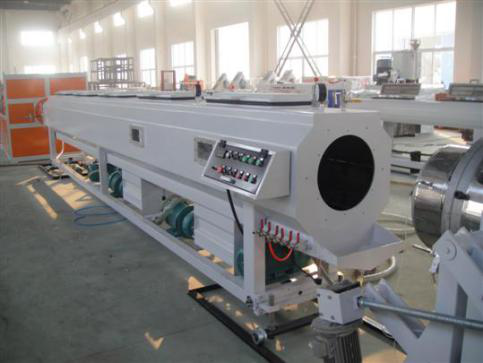

★ Vacuum Forming Machine
For pipe shaping and cooling,equipped with vacuum system and water circulation system for shaping and cooling，stainless steel box,circulating water spray cooling.

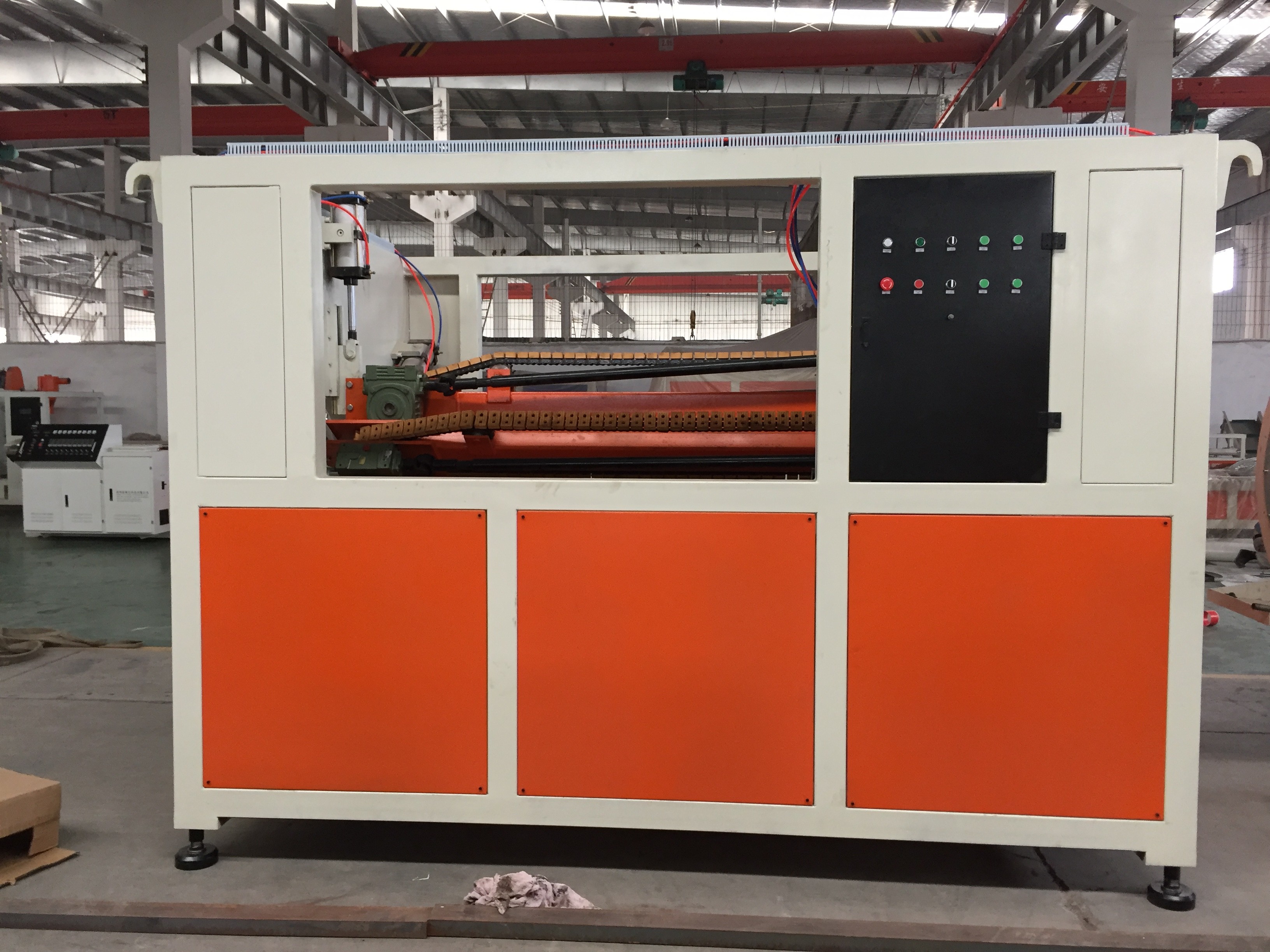

★ Haul off machine
Used for continuous and automatic extraction of cooled and hardened pipes from the nose,frequency conversion speed regulation.

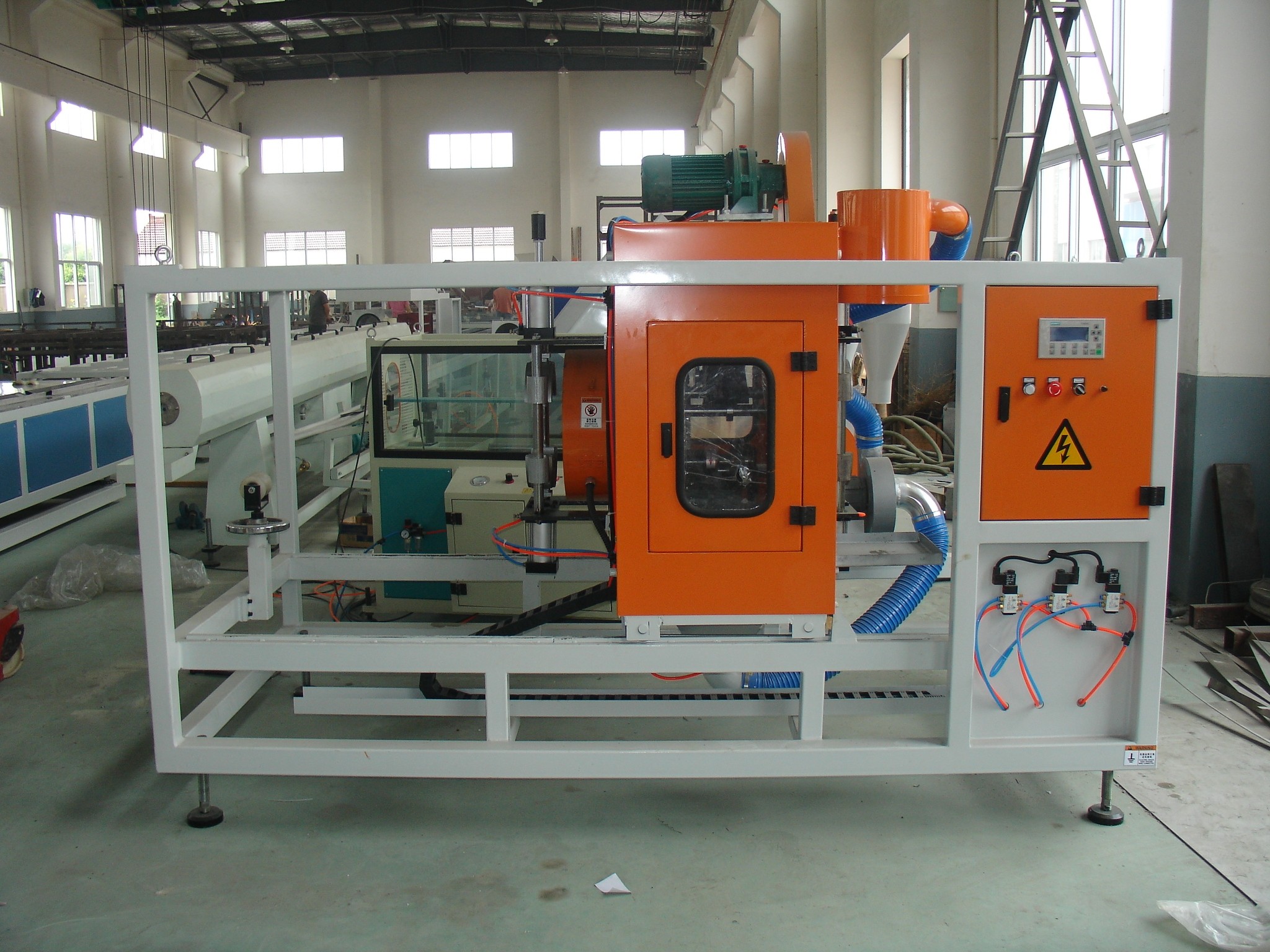

★ Cutting machine
The cutting machine takes the fixed length switch signal as the instruction,completes the whole cutting process and keeps synchronization with the pipe operation during the cutting process.
Technical Parameter
|
Pipe Line Model
|
Diameter Range(mm)
|
Extruder Model
|
Line length(m)
|
|
FST-63
|
16-63
|
SJSZ-51/105
|
24
|
FST-110 | 20-110 | SJSZ-55/110 | 25 |
FST-260 | 50-250 | SJSZ-65/132 | 25 |
FST-315 | 110-315 | SJSZ-80/156 | 25 |
|
FST-630
|
315-630
|
SJSZ-92/188
|
32
|
|
FST-800
|
500-800
|
SJSZ-105/218
|
33
|
Working Video
Wide Application
PVC pipe is mainly used for the production of agricultural drainage, building drainage, electricity, communication cables, etc. and various PVC pipes with various pipe diameters and wall thicknesses.
