PVC PE plastic single wall corrugated pipe extrusion machine production line

PVC PE plastic single wall corrugated pipe extrusion machine production line

PVC PE plastic single wall corrugated pipe extrusion machine production line
PVC PE plastic single wall corrugated pipe extrusion machine production linePVC PE plastic single wall corrugated pipe extrusion machine production linePVC PE plastic single wall corrugated pipe extrusion machine production linePVC PE plastic single wall corrugated pipe extrusion machine production line
CategoriesPlastic Corrugated Pipe Production Line
AlbumView larger image
BrandFOSITA
ModelFST
Automatic GradeAutomatic
Brand NameFosita
Voltage380V
Power(W)37kw
Dimension(L*W*H)CAPACITY
Weight2-10T
CertificationCE ISO
pipe diameter10-50mm
Die Block(couple)60
Production speed588m/h
FOB portSHANGHAI
Terms of PaymentL/C, Western Union, T/T
Update Time2018-11-17
Detail Information
Specification

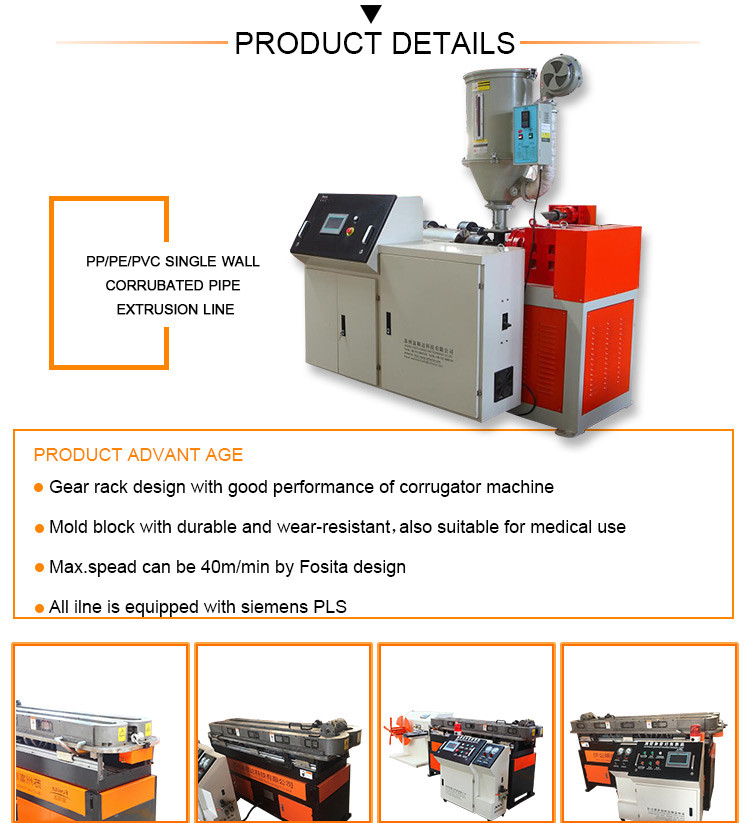

Single wall corrugated pipe production line(10-50mm):

65/30 single screw extruder

Screw diameter: 65mm
L/D Ratio: 30:1
Screw&barrel material: 38CrMoAlA
Motor: 37kw
Barrel heating method:Cast-alumium heating, with stainless steel protection
Output:120-180kg/h
Temperature Control: Ormon
Contactor: Dexili

Corrugated pipe forming machine

Motor: 2.2kw
Production speed:8m/min
Quantity of shaping mould:60 pairs per set
Cooling method:Air cooling

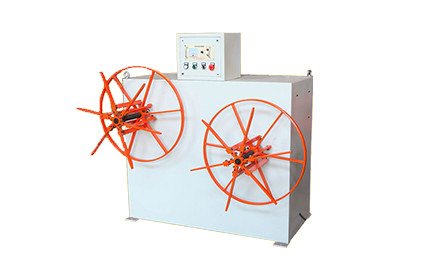

Winder

Inner diameter of coil(mm):can be made as your request
Outside diamter of coil(mm):can be made as your request
Working method: Pneumatic
APPLICATIONS
